BstAIR

Up to 40 bar

Low maintenance costs,
components require a very quick maintenance service

Gradual ON/OFF switching,
without any electric peaks

Continuous operations,
without needing any cool-down period

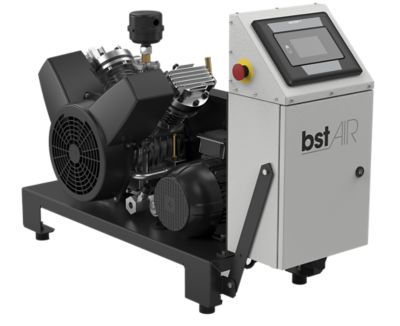

bstAIR

The bstAIR pressure elevators are designed for those industries and processes that require compressed air or nitrogen at high pressure, such as laser-cutting or blow moulding of PET and other plastics. They can be connected to low-pressure systems within your building, providing a pressure of up to 40 bar, with a loss from 0.4 m3/min to 3.6 m3/min.

The advantages of choosing bstAIR include lower maintenance costs, reliability and high attention to detail. They are equipped with a highly reliable, single-stage pumping system, which requires only quick maintenance and produces a high level of vibration. BstAIR is characterised by a slowly starting momentum, without electric peaks, and a gradual stop. For the heaviest use, you can choose a completely closed engine cooled with air.

BstAIR comes in two versions, both equipped with in-house internal products: the standard and the full-featured ones. The full-featured bstAIR has more pressure and temperature sensors, as well as the Advanced ES4000T and ICONS controllers.

Have a look at the range leaflet for more information

Title

bstAIR 15-20 leaflet EN

bstAIR 15-20 leaflet EN
Filename
bstAIR-15-20-leaflet-EN.pdf
Size
1022 KB
Format
pdf
Download
Title

Booster 40 - Ceccato English

Download the leaflet
Filename
CECCATO_BSTAIR40_ENG_699910066.pdf
Size
1 MB
Format
pdf
Download

Looking forward to buy this compressor?

Technical details bstAIR 10 - 40 bstAIR 10 - 25 bstAIR 15 - 40 bstAIR 15 - 25 bstAIR 20 - 40 bstAIR 20 - 25 bstAIR 25 - 40 bstAIR 25 - 25 bstAIR 30 - 40 bstAIR 30 - 25 bstAIR 40 - 40 bstAIR 40 - 30
Motor power 7.5 kW / 10 HP 11 kW / 15 HP 15 kW / 20 HP 18.5 kW / 25 HP 22 kW / 30 HP 30 kW / 40 HP
Max. Inlet Pressure 10 bar 5 bar 10 bar 5 bar 10 bar 5 bar 10 bar 5 bar 10 bar 5 bar 10 bar 5 bar
Max. discharge Pressure 40 bar 25 bar 40 bar 25 bar 40 bar 25 bar 40 bar 25 bar 40 bar 25 bar 40 bar 25 bar
FAD* 2,082 l/min 1,536 l/min 2,910 l/min 2,220 l/min 3,828 l/min 2,928 l/min 4,650 l/min 3,906 l/min 5,652 l/min 4,650 l/min 7,488 l/min 6,168 l/min
Additional accessories Tanks 40 bar
High-pressure line filters
High-pressure condensate drains
ECOntrol6i

*FAD refers to 7 bar and all units are measured according to the ISO 1217

**Average noise level is measured according to the ISO 1251

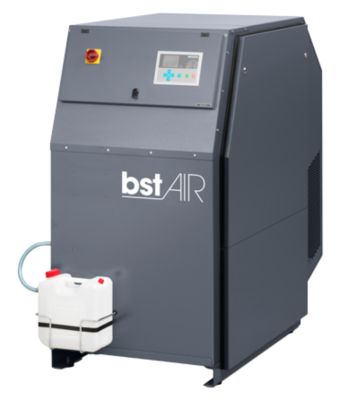

BstAIR 300

Do you need a booster for a high-pressure air or nitrogen application such as bottle filling, pressure testing, laser cutting or gas handling? Or maybe you use it to manage peak consumption or as a back-up compressor? Count on the bstAIR 300. Available with a flow range from 0.20 m3/min to 0.83 m3/min, it is especially designed to give you continuous operation, maximum efficiency, and low noise levels.

BstAIR 300 grants you high-quality air. Their integrated purification system removes hence the residual oil. They guarantee a very comfortable workspace since the canopy reduces sound emissions considerably.

The bstAir 300 is built for high-pressure performance and reliability:

  • Multistage piston pump achieves a working pressure of 300 bar.
  • Inlet and outlet solenoid valves.
  • Inlet pressure sensor stops the booster when the inlet pressure is too high or too low.
  • Axial fan installed on the shaft of the booster provides cooling.
  • Combined forced and splash lubrication system.
  • Crankcase is vented via the oil separator and the oil breather to minimize oil consumption.

Have a look at the range leaflet for more information

Title

Ceccato DRC 40-60 HP IVR EN

Ceccato DRC 40-60 HP IVR EN
Filename
Ceccato DRC 40-60 HP IVR EN.pdf
Size
2 MB
Format
pdf

Looking forward to buy this compressor?

Technical details bstAIR 7 - 300 bstAIR 10 - 300 bstAIR 15 - 300 bstAIR 25 - 300
Motor power 5.5 kW / 7 HP 7.5 kW / 10 HP 11 kW / 15 HP 15 kW / 20 HP
Max. Inlet Pressure 5 - 11 bar 7 - 10 bar 2 - 4 bar
Max. operational Pressure 300 bar
FAD* 475 l/min 645 l/min 750 l/min 830 l/min

*FAD refers to 7 bar and all units are measured according to the ISO 1217

**Average noise level is measured according to the ISO 1251
