with very quick maintenance service
Low Maintenance Costs
Gradual ON/OFF Switching
without any electric peaks
Continuous Operations
without cool-down periods
BstAIR 400
The bstAIR pressure elevators are designed for those industries and processes that require compressed air or nitrogen at high pressure, such as laser-cutting or blow moulding of PET and other plastics. They can be connected to low-pressure systems within your building, providing a pressure of up to 40 bar, with a loss from 0.4 m3/min to 3.6 m3/min.
The advantages of choosing bstAIR include lower maintenance costs, reliability and high attention to detail. They are equipped with a highly reliable, single-stage pumping system, which requires only quick maintenance and produces a low level of vibration. BstAIR is characterised by a slowly starting momentum, without electric peaks, and a gradual stop. For the heaviest use, you can choose a completely closed engine cooled with air.
BstAIR comes in two versions, both equipped with in-house internal products: the standard and the full-featured ones. The full-featured bstAIR has more pressure and temperature sensors, as well as the Advanced ES4000T and ICONS controllers.

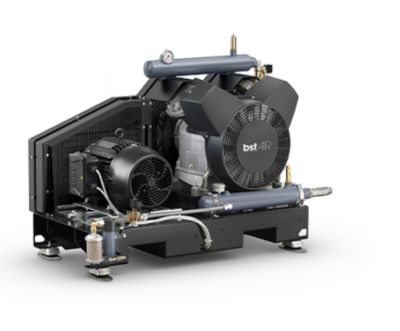

BstAIR 400 reaches up to 40 bar
Technical data
| Technical details | bstAIR 10 - 40 | bstAIR 10 - 25 | bstAIR 15 - 40 | bstAIR 15 - 25 | bstAIR 20 - 40 | bstAIR 20 - 25 | bstAIR 25 - 40 | bstAIR 25 - 25 | bstAIR 30 - 40 | bstAIR 30 - 25 | bstAIR 40 - 40 | bstAIR 40 - 30 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Motor power | 7.5 kW / 10 HP | 11 kW / 15 HP | 15 kW / 20 HP | 18.5 kW / 25 HP | 22 kW / 30 HP | 30 kW / 40 HP | ||||||
| Max. Inlet Pressure | 10 bar | 5 bar | 10 bar | 5 bar | 10 bar | 5 bar | 10 bar | 5 bar | 10 bar | 5 bar | 10 bar | 5 bar |
| Max. discharge Pressure | 40 bar | 25 bar | 40 bar | 25 bar | 40 bar | 25 bar | 40 bar | 25 bar | 40 bar | 25 bar | 40 bar | 25 bar |
| FAD* | 2,082 l/min | 1,536 l/min | 2,910 l/min | 2,220 l/min | 3,828 l/min | 2,928 l/min | 4,650 l/min | 3,906 l/min | 5,652 l/min | 4,650 l/min | 7,488 l/min | 6,168 l/min |
| Additional accessories | Tanks 40 bar High-pressure line filters High-pressure condensate drains ECOntrol6i |
|||||||||||
*FAD refers to 7 bar and all units are measured according to the ISO 1217
**Average noise level is measured according to the ISO 1251
Documentation
BstAIR 300
Do you need a booster for a high-pressure air or nitrogen application such as bottle filling, pressure testing, laser cutting or gas handling? Or maybe you use it to manage peak consumption or as a back-up compressor? Count on the bstAIR 300. Available with a flow range from 0.20 m3/min to 0.83 m3/min, it is especially designed to give you continuous operation, maximum efficiency, and low noise levels.
BstAIR 300 grants you high-quality air. Their integrated purification system removes hence the residual oil. They guarantee a very comfortable workspace since the canopy reduces sound emissions considerably.
The bstAir 300 is built for high-pressure performance and reliability:
- Multistage piston pump achieves a working pressure of 300 bar.
- Inlet and outlet solenoid valves.
- Inlet pressure sensor stops the booster when the inlet pressure is too high or too low.
- Axial fan installed on the shaft of the booster provides cooling.
- Combined forced and splash lubrication system.
- Crankcase is vented via the oil separator and the oil breather to minimize oil consumption.
BstAIR 300
Technical data
| Technical details | bstAIR 7 - 300 | bstAIR 10 - 300 | bstAIR 15 - 300 | bstAIR 25 - 300 |
|---|---|---|---|---|
| Motor power | 5.5 kW / 7 HP | 7.5 kW / 10 HP | 11 kW / 15 HP | 15 kW / 20 HP |
| Max. Inlet Pressure | 5 - 11 bar | 7 - 10 bar | 2 - 4 bar | |
| Max. operational Pressure | 300 bar | |||
| FAD* | 475 l/min | 645 l/min | 750 l/min | 830 l/min |
*FAD refers to 7 bar and all units are measured according to the ISO 1217
**Average noise level is measured according to the ISO 1251

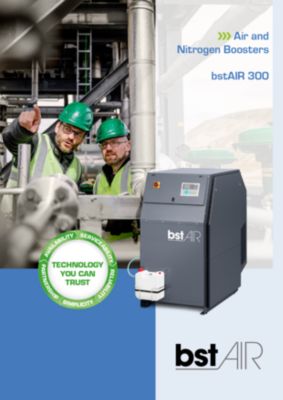

Documentation
