reliable output with minimal maintenance
High Efficiency Air Filtration
Innovative Cooling System
maintain optimal temperatures
User-Friendly Interface
with intuitive control and connectivity options.
Installation for medium air requirements
DRD 40 - 100 HP is the right installation for medium air requirements, offering continuous air flow from the moment they are switch on untill they're switched off.
Designed to resist under stress and during their application under the harshest conditions in medium businesses, the DRD 40 – 100 HP allows to decrease energy losses and gain energy savings and increase your production systems’ performance, thanks to the IE4 motors. The in-house designed elements the FAD has been increased, and the power consumption has been reduced. Besides, DRD 40 – 100 HP fits the environment with an ambient temperature of up to 46°C degrees.
Easy to install, the DRD 40 – 100 HP grants low maintenance costs, thanks to the removable panels and, thus, all components are accessible very quickly. Being very silent, DRD 40 – 100 HP fixed-speed screw compressors can be installed directly to the point-of-usage, allowing for a more comfortable workspace.
Available both on base and base with dryers and with different controllers, the DRD 40 – 100 HP at fixed speed offers a wide range of options to push the comfort and your production systems’ performance.
DRD 40 - 100 HP offer higher efficiency with the fixed speed technology
About DRD 40 - 100 HP
Explore more about the product below. Read about technical specification, maintenance, the savings you can gain, the benefits and how you can benefit from this range.
Leverage cutting-edge technology with the DRD Series. Our compressors feature an oil-cooled drive train and a premium efficiency motor, ensuring that energy loss is minimized while maintaining peak performance at all times.
Routine maintenance is simplified with our user-friendly design. Quick access to components and a minimalistic internal layout mean less downtime and lower service costs, contributing to overall efficiency and longer equipment life.
Perfect for industries ranging from automotive to pharmaceuticals, the DRD Series supports a wide array of applications. These compressors excel in providing efficient and reliable compressed air for manufacturing processes, automotive assembly lines, and food and beverage operations.
- Enjoy consistent performance in extreme conditions with our design that operates efficiently at up to 46°C.
- Streamline operations with an easy-to-install, maintenance-light design, reducing downtime significantly.
- Achieve superior air quality and operational efficiency with Ceccato’s proprietary air-end element.
- Experience peace of mind with enhanced safety features, including an emergency stop and protection grid.
- Utilize advanced controls with the ES4000T controller for optimal energy savings and performance management.
Technical data
| Technical details | DRD 40 HP | DRD 50 HP | DRD 60 HP | DRD 75 HP | DRD 100 HP |
|---|---|---|---|---|---|
| Motor power | 30 kW / 40 HP | 37 kW / 50 HP | 45 kW / 60 HP | 55 kW / 75 HP | 75 kW / 100 HP/td> |
| Pressure | 7 - 10 bar | 7 - 12.5 bar | |||
| FAD* | 79 - 94 l/s | 97 - 113 l/s | 100 - 133 l/s | 125 - 180 l/s | 171 - 234 l/s |
| Noise | 69 dB(A) | 70 dB(A) | 74 dB(A) | 75 dB(A) | |
*FAD refers to 7 bar

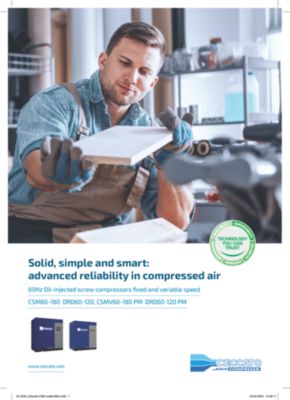

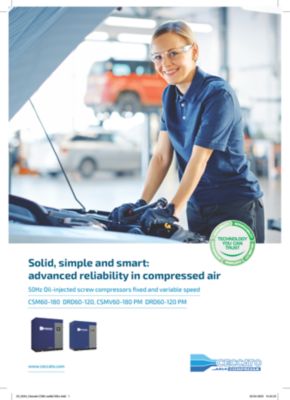

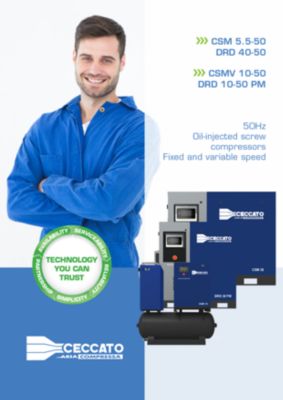

Documentation
Get tailored advice
Choosing the right air compressor and equipment can be challenging, which is why the best step you can take is to reach out to us directly. Our team of experienced sales engineers and local distributors are here to provide expert advice tailored specifically to your needs. As a global brand with a strong local presence, we're ready to support you wherever you are.
Reach out today or complete the form below — we're here to help.
Learn more about available compressor options
You can also choose the same model at different configurations or with a different output power
- Complete your system
- Choose the right Lubricants
- Still undecided? Follow our Selection Guide
- Screw Compressors
