Up to 45% energy savings
Reduced costs
Enhanced reliability
extending equipment life
Optimised performance
minimizing power loss
Maximum saving for medium size applications

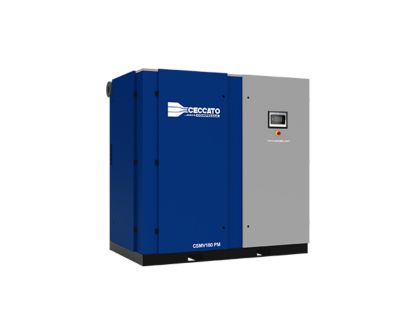

CSMV 60 – 180 HP PM are the compact and reliable solution for your production system.
Designed for frequently commissioning at load and unload condition, Ceccato’s CSMV 60 – 180 HP PM air compressor meets the minimum power consumption to throughout the long-term commissioning and it can cut your energy bill by up to 35%.
Highly reliable, CSMV 60 – 180 HP PM are equipped with the innovative and in-house designed inverter technology: this range ensures the perfect match between your air requirements and the supplied air. The standard controller ES4000T allows you to monitor your compressor’s status, also remotely, at any time. It also suggests costs optimisations, supporting you in saving money.
The compact range of CSMV 60 – 180 are equipped with iPM motor.
About CSMV 60 – 180 HP IVR
Explore more about the product below. Read about technical specification, maintenance, the savings you can gain, the benefits and how you can benefit from this range.
Our CSMV 60-180 HP PM compressors are designed for excellence. With an in-house designed oil-cooled PM motor and advanced screw elements, they offer outstanding performance across a wide range of applications.
Experience cutting-edge technology with our compressors, ensuring energy efficiency, reliability, and consistent performance.
Count on Ceccato for comprehensive maintenance services. Our goal is to keep your compressor running smoothly, minimizing downtime, and ensuring your operations remain efficient.
Our CSMV 60-180 HP PM compressors are suitable for a wide range of applications, ensuring reliable and efficient compressed air wherever you need it.
- Oil-Cooled PM Motor: Our unique oil-cooled PM motor with Super Premium Efficiency guarantees reduced energy consumption.
- Advanced Screw Elements: The latest in-house designed screw elements ensure enhanced reliability and an extended compressor lifetime.
- Direct Drive Transmission: Integrated direct drive transmission minimizes power losses, optimizing performance.
Technical data
| Technical details | CSMV 60 HP IVR PM | CSMV 75 HP IVR PM | CSMV 100 HP IVR PM | CSMV 120 HP IVR PM | CSMV 150 HP IVR PM | CSMV 180 HP IVR PM |
|---|---|---|---|---|---|---|
| Motor power | 45 kW / 60 HP | 55 kW / 75 HP | 75 kW / 100 HP | 90 kW / 120 HP | 110 kW / 150 HP | 132 kW / 180 HP |
| Pressure | 7 - 10 bar | 7 - 10.5 bar | 7 - 13 bar | |||
| FAD* | 1,620 l/min | 2,580 l/min | 3,120 l/min | 4,020 l/min | 5,220 l/min | 5,880 l/min |
| Noise | 74 dB(A) | 75 dB(A) | 79 dB(A) | 77 dB(A) | 80 dB(A) | |
| Configuration | On Base | |||||
| Controller | ES4000 Touch | |||||
*FAD refers to 7 bar
Documentation
Get tailored advice
Choosing the right air compressor and equipment can be challenging, which is why the best step you can take is to reach out to us directly. Our team of experienced sales engineers and local distributors are here to provide expert advice tailored specifically to your needs. As a global brand with a strong local presence, we're ready to support you wherever you are.
Reach out today or complete the form below — we're here to help.
Learn more about available compressor options
You can also choose the same model at different configurations or with a different output power
