with our ISO 8573-1 Class 0 certification
100% Oil-free Clean Air
Exceptional Performance
while reducing energy consumption
Integrated Dryer
a constant pressure
The highest purity in compressed air
Suitable for dental, pharmaceutical and food sectors, oil-free scroll compressors SpiralAIR provide oil-free compressed air at minimal energy costs.
These compressors decrease the energy costs by adapting the motor speed to the user’s demands.
Thanks to the purity of the output air, further maintenance costs in the airnet is reduced. SpiralAIR technology guarantees air compression through two helicoidal elements, ensuring a constant flow of compressed air and a silent working system.
SpiralAir offers all advantages of the oil-free technology at high efficiency level.

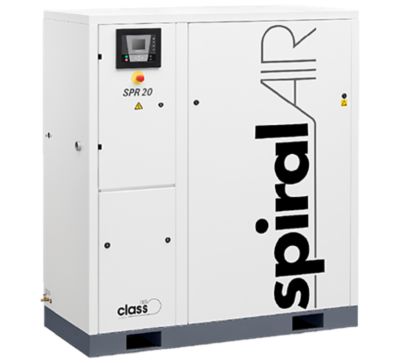

About SpiralAIR SPR(x) 2 - 30
Explore more about the product below. Read about technical specification, maintenance, the savings you can gain, the benefits and how you can benefit from this range.
Our compressors come with ISO 8573-1 Class 0 certified technology, ensuring 100% oil-free air. The integrated dryer maintains a constant +3°C PDP for SPR and +7°C PDP for SPRx , elevating the quality of your compressed air.
With SpiralAir, maintenance becomes a breeze. Its service-friendly vertical layout means easier access and faster service, ensuring that your operations remain uninterrupted.
SpiralAir SPR 2-30 is best suited for industries like pharmaceuticals, food & beverage, electronics, and textiles, ensuring that you always have the highest quality of compressed air at your disposal.
- Certified 100% Oil-Free Air: Uncompromised air quality.
- High-Efficiency Motors: Exceptional performance, reduced energy costs.
- Integrated Dryer: Consistent air quality with a +3°C PDP for SPR and +7°C PDP for SPRx
Technical data
| Technical details | MONO | ||||
|---|---|---|---|---|---|
| SPR 2 | SPR 3 | SPR 5 | SPR 8 | ||
| Motor power | 1.5 kW / 2 HP | 2.2 kW / 3 HP | 3.7 kW / 5 HP | 5.5 kW / 7.5 HP | |
| Pressure | 8 - 10 bar | ||||
| FAD* | 2.9-1.9 l/s | 4.2-3.4 l/s | 6.7-5.9 l/s | 9.8-7.6 l/s | |
| Noise | 53 dB(A) | 5 dB(A) | 57 dB(A) | 59 dB(A) | |
| Tank | Optional | ||||
*FAD refers to 8 - 10 bar
| Technical details | MULTI | ||||
|---|---|---|---|---|---|
| SPR 2 | SPR 15 | SPR 20 | SPR 22 | SPR 30 | |
| Motor power | 2x3.7 kW / 2x5 HP | 2x5.5 kW / 2x7.5 HP | 4x3.7 kW / 4x5 HP | 3x5.5 kW / 3x7.5 HP | 4x5.5 kW / 4x7.5 HP |
| Pressure | 8 - 10 bar | ||||
| FAD* | 13.4-11.4 l/s | 20.3-15.0 l/s | 26.4-23.0 l/s | 31.0-23.7 l/s | 40.8-30.0 l/s |
| Noise | 63 dB(A) | 64 dB(A) | 65 dB(A) | ||
| Tank | Optional | ||||
*FAD refers to 8 - 10 bar
| Technical details | OPEN | ||
|---|---|---|---|
| SPRx 3 | SPRx 5 | SPRx 8 | |
| Motor power | 2.2 kW / 3 HP | 3.7 kW / 5 HP | 5.5 kW / 7.5 HP |
| Pressure | 8 - 10 bar | ||
| FAD* | 4.0-3.4 l/s | 6.7-5.9 l/s | 9.8-7.6 l/s |
| Noise | 70-68 dB(A) | 72-69 dB(A) | 74-72 dB(A) |
| Tank | Optional | ||
*FAD refers to 8 - 10 bar
Documentation
Get tailored advice
Choosing the right air compressor and equipment can be challenging, which is why the best step you can take is to reach out to us directly. Our team of experienced sales engineers and local distributors are here to provide expert advice tailored specifically to your needs. As a global brand with a strong local presence, we're ready to support you wherever you are.
Reach out today or complete the form below — we're here to help.
