no special flooring required
Simple Installation
Low Noise Levels
enjoy a quieter workspace
Easy to Use and Maintain
with hassle-free operation
High performance in small dimensions, for small industries

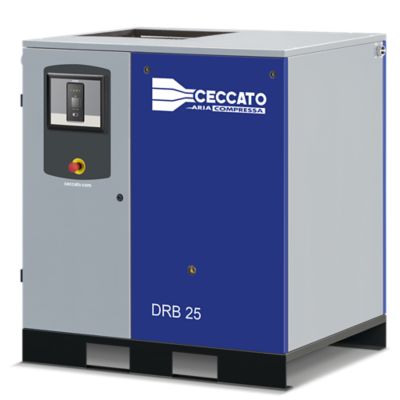

DRB 20 – 35 HP is a fixed speed screw compressor with the lowest power for industries.
It is equipped with belt transmission, which allows return on investment in two years. Highly stabile, Ceccato’s DRB 20 – 35 HP makes it a perfect choice for industries requiring running a long cycle and operating continuously.
With its compact design and low noise levels, the DRB 20 – 35 HP is easy to install in a compressor room or directly at the point of use. It can be used both as a primary or as a complementary compressor. DRB 20 – 35 HP is available in three configurations: tank-mounted, base mounted and/or with an integrated dryer.
DRB 20 - 34 HP provides you with continuous air flow
About DRB 20 - 34 HP
Explore more about the product below. Read about technical specification, maintenance, the savings you can gain, the benefits and how you can benefit from this range.
The DRB range ensures uninterrupted performance, with power ranging from 15 kW to 26 kW and free air delivery from 162 m³/h to 253 m³/h. It adapts to your specific needs with available pressure options including 7.5 bar, 8.5 bar, 9.5 bar, 10 bar, and 13 bar. Choose from various configurations, including Floor Mounted, Floor Mounted + Dryer, and 500L - Dryer.
With long service intervals and easy-access components, maintenance becomes hassle-free. Ceccato ensures you have reliable compressed air at all times.
These compressors are suitable for waste management, textile industry, paper industry, and various large-scale production systems.
- High-efficiency screw element: The advanced screw element design ensures optimal air compression, reducing energy consumption.
- Reliable operation even in 46°C: These compressors are built to withstand extreme conditions, guaranteeing uninterrupted performance.
- IP66-enclosed drive train: The enclosed drive train enhances durability and minimizes maintenance requirements.
Technical data
| Technical details | DRB 20 HP | DRB 25 HP | DRB 29 HP | DRB 34 HP |
|---|---|---|---|---|
| Motor power | 15 kW / 20 HP | 18 kW / 25 HP | 22 kW / 30 HP | 26 kW / 35 HP |
| Pressure | 7.5 - 13 bar | |||
| FAD* | 2,694 l/min | 3,318 l/min | 3,858 l/min | 4,212 l/min |
| Noise | 67 dB(A) | 68 dB(A) | 69 dB(A) | 71 dB(A) |
| Configuration | on Base | |||
| Controller | ES4000 | |||
| Optional controller | ES4000 Advanced with ICONS CLAMP | |||
*FAD refers to 7 bar
Documentation
Get tailored advice
Choosing the right air compressor and equipment can be challenging, which is why the best step you can take is to reach out to us directly. Our team of experienced sales engineers and local distributors are here to provide expert advice tailored specifically to your needs. As a global brand with a strong local presence, we're ready to support you wherever you are.
Reach out today or complete the form below — we're here to help.
Learn more about available compressor options
You can also choose the same model at different configurations or with a different output power
- Complete your system
- Choose the right Lubricants
- Still undecided? Follow our Selection Guide
- Screw Compressors
DRB 20 - 34 HP
DRB 20 – 35 HP is a fixed speed screw compressor with the lowest power for industries. It is equipped with belt transmission, which allows return on investment in two years. Highly stabile, Ceccato’s DRB 20 – 35 HP makes it a perfect choice for industries requiring running a long cycle and operating continuously.
With its compact design and low noise levels, the DRB 20 – 35 HP is easy to install in a compressor room or directly at the point of use. It can be used both as a primary or as a complementary compressor. DRB 20 – 35 HP is available in three configurations: tank-mounted, base mounted and/or with an integrated dryer.
The DRB range ensures uninterrupted performance, with power ranging from 15 kW to 26 kW and free air delivery from 162 m³/h to 253 m³/h. It adapts to your specific needs with available pressure options including 7.5 bar, 8.5 bar, 9.5 bar, 10 bar, and 13 bar. Choose from various configurations, including Floor Mounted, Floor Mounted + Dryer, and 500L - Dryer.
With long service intervals and easy-access components, maintenance becomes hassle-free. Ceccato ensures you have reliable compressed air at all times.
Have a look at the range leaflet for more information
Looking forward to buy this compressor?
| Technical details | DRB 20 HP | DRB 25 HP | DRB 29 HP | DRB 34 HP |
|---|---|---|---|---|
| Motor power | 15 kW / 20 HP | 18 kW / 25 HP | 22 kW / 30 HP | 26 kW / 35 HP |
| Pressure | 7.5 - 13 bar | 7.5 - 13 bar | 7.5 - 13 bar | 7.5 - 13 bar |
| FAD* | 2,694 l/min | 3,318 l/min | 3,858 l/min | 4,212 l/min |
| Noise | 67 dB(A) | 68 dB(A) | 69 dB(A) | 71 dB(A) |
| Configuration | on Base | on Base | on Base | on Base |
| Controller | ES4000 | |||
| Optional controller | ES4000 Advanced with ICONS CLAMP | |||
*FAD refers to 7 bar
